Lepord 2 PSO, Tyskland, PSO= Peace Support Operationsmustamato skrev:Det stämmer att det är en Leopard i grunden, men landet i fråga kallar inte systemet varken för Leopard eller Strv 121. Således, vad är det för vagn, från vilket land och vad är det för modifiering?
Quiz: Militär utrustning
Nein. Här kommer en ledtråd som borde leda in er på rätt land åtminstone (avseende stridsvagnen till vänster, även om också den är modifierad med extrapansar). "Leoparden" på bilden har ett 140 mm eldrör, fortfarande inte Tyskland.Mane skrev:Lepord 2 PSO, Tyskland, PSO= Peace Support Operationsmustamato skrev:Det stämmer att det är en Leopard i grunden, men landet i fråga kallar inte systemet varken för Leopard eller Strv 121. Således, vad är det för vagn, från vilket land och vad är det för modifiering?
Senast redigerad av 1 mustamato, redigerad totalt 4 gånger.
Chansar igen, om man fårmustamato skrev:Nein.Mane skrev:Lepord 2 PSO, Tyskland, PSO= Peace Support Operationsmustamato skrev:Det stämmer att det är en Leopard i grunden, men landet i fråga kallar inte systemet varken för Leopard eller Strv 121. Således, vad är det för vagn, från vilket land och vad är det för modifiering?
Pz 87 Leo, Schweiz, Leopard 2 midlife upgrade eller WE
Kanske?
Här får man chansa hejviltMane skrev:Chansar igen, om man fårmustamato skrev:Nein.Mane skrev:Lepord 2 PSO, Tyskland, PSO= Peace Support Operationsmustamato skrev:Det stämmer att det är en Leopard i grunden, men landet i fråga kallar inte systemet varken för Leopard eller Strv 121. Således, vad är det för vagn, från vilket land och vad är det för modifiering?
Pz 87 Leo, Schweiz, Leopard 2 midlife upgrade eller WE
Kanske?
Och med GIATs "battle-management system"
MVH
Hans
Det stämmer bra det, din fråga. GIAT:s del är dock ganska begränsad, de står för delarna i interiörbilden jag lade upp tidigare, pansaret är nyutvecklat och schweiziskt. Den äldre stridsvagnen ovan till vänster om Leoparden med 140 mm eldrör är för övrigt en Pz68 med tilläggspansar. Ser onekligen tanig ut jämfört med Pz 87WE med 140 mm eldrör.Mane skrev:Chansar igen, om man får
Pz 87 Leo, Schweiz, Leopard 2 midlife upgrade eller WE
Kanske?
Hade jag lagt upp bilden med bergen i bakgrunden hade ni nog förstått direkt vilket land det var fråga om.Currently the two companies KMWeg (75%) and RUAG Land System (25%) developing a modernization package for Swiss Panzer 87. From 2008 around 120 Pz 87 will be upgraded and designated Pz 87WE (Werterhaltung = value conservation).
Main goal of the combat improvement project is the signification improvement of the protection, but also of the command and control capabilities.
The hull is equipped with an additional mine protection as it got fielded also with the German Leopard 2A6. The package includes a large steel plate mounted under the hull front and covering the complete fighting compartment. The driver’s seat has been removed y a parachute harness like arrangement that the driver wears around his hip. Large belt hold him in the right position. Like that the driver does not have any contact with the hull except on the pedals and is out of the shockwave area of exploding land mines. The protection of the driver is also increased by additional armour plate on the hull glacis.
A last change for the driver is the use of a rear view camera, mounted on the hull rear top. It allows the rear driving without any guidance by the commander.
More extensive changes have been made to the turret of the Pz 87 WE. Front and frontal sides are protected by Swiss developed armour packages. By using titanium alloys the passive protection against APFSDS penetrators could be improved significantly. Switzerland is not using the wedge armour developed in Germany and used for all Leopard 2A5+ versions. Instead of it the 230mm strong boxes are used which keep the well known form of the Pz 87 turret. The use of the new armour boxes has advantages, but also some disadvantages. The form ensures a constant protection level nearly over the entire turret front. Unfortunately the gunner’s sight has not been moved and is still placed in the right turret front, forming a ballistic hole. The armour boxes at the turret sides are longer than the German ones and covering nearly the complete fighting compartment. To ensure access to the engine compartment the modules can be moved aside.
The additional armour at the turret front and sides consists of several parts and can be removed easily. According to the current planning the modules should be mounted only in actual combat like situations. In addition all boxes can be opened at the bottom and the inserted armour can be exchanged according to the expected threat.
An additional external change is the improvement of the turret roof armour. The smoke grenade launcher has been also redesigned and is protected by a cover plate like the French Galix system. Additional closed storage boxes for the crew’s personal equipment are mounted at the turret rear.
The Pz 84WE is equipped with an electric turret drive, replacing the older electro-hydraulic one of the Pz 87. The new system is significantly decreasing the crew’s exposure in case of penetrating hit. In addition the energy consumption and the emission of thermal energy and noise could be decreased.
An important change is the use of a new battlefield command system In 2008 the Swiss Army is fielding this system which is allowing digital communication and information exchange between different units. The system enables the GPS based navigation from a colored display at the commander’s station. A third antenna is mounted at the right turret side beside the commander cupola. All navigation and communication data is collected and processed in a hull mounted digital computer.
The Peri-R17A1 of the Pz 87 has been replaced by the later Peri-R17A2. The new sight includes an Ophelios-P thermal sight and allows the commander to observe the battlefield by night. The sight is still mounted in front of the commander’s cupola. Because of the increased dimensions of the sight the field of view of the commander over his normal vision blocks is slightly limited.
The normal AA-MG of the Pz-87 has been replaced by the so called Autarkic Weapon System (AWS). It consists of a 12.7mm M2 (MG64) machine gun, in a remotely controlled gun mount. The system is electrical controlled and full stabilized. The system is equipped with a day channel only. Tests whit an image intensifier sight did not lead to expected results. On request the system can be equipped with a thermal sight as well. The AWS is controlled by the loader. On his station a flat display and a joystick are mounted. It is planned to develop an active protection system based on the AWS. Then the system will be equipped whit the parallel 7.5 MGs. The AWS will then be equipped with a sensor guided logic that acquiring protection targets, classifies them and if necessary start an attack. The system would be comparable to British TAMS.
Because of the AWS the loader’s hatch needed to be modified, it swings now open to the front.
One focus during the development of the Pz 87WE was also the reduction of Radar, thermal and noise emission. To achieve this goal structural changes like the smoke grenade cover or the redesigned storage boxes have been introduced. In addition the tank can be equipped with a new multi-spectral camouflage kit. It is minimizing the radar reflections and decreases the thermal signature. The kit is mounted all over the turret but also the hull, including large skirt at the front. Together with the already available exhaust silencers the Pz-87WE will be one of the MBTs with the lowest detection possibility.
The 61t heavy Pz 87WE is showing what potential is still hidden in the old Leopard 2. After 20 years of service use in Swiss Army the combat effectiveness of the Pz 87 is improved significantly.
Absolut inteMane skrev: Det är väl trevligt med flytsaker?
Intressant är, även om det diskuteras, hur Exoceten aldrig exploderade.
The Exocet that struck the Sheffield failed to explode but the impact of the missile travelling at 315 m/s and laden with unburnt rocket fuel was enough to set the ship ablaze. Accounts suggest that the initial impact of the missile immediately destroyed the ship's onboard electricity generating systems and prevented the anti-fire mechanisms from operating effectively, dooming the ship to be consumed by the raging fire.
Från Wikipedia
Fransmännen pratar gärna inte om det då roboten riskerade dåligt rykte och engelsmännen inte heller då det är genant att det går att sänka en båt på det viset - argentinarna var väl nöjda med att båten slogs ut.
MVH
Hans

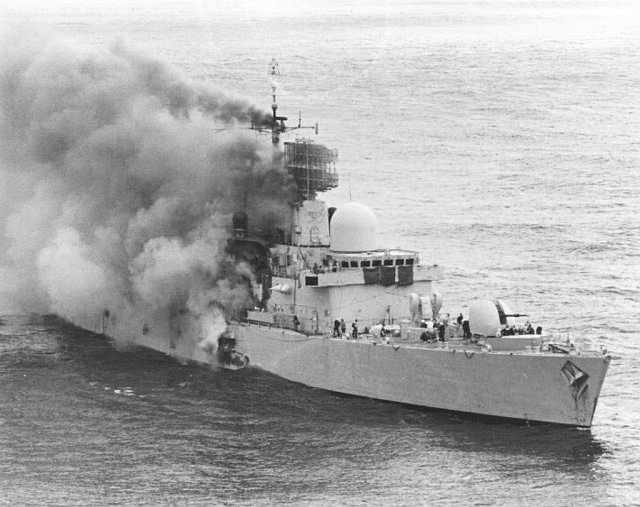

HMS Sheffield sjönk några dagar senare i hårt väder när man försökte bogsera vraket till lugnare vatten. Enligt de uppgifter som jag läst så fylldes en tredjedel av fartygets innerutrymmen på 20 sek med tjock, svart och giftig rök när AM39 roboten slog in i sidan. Innan någon börjar diskutera huruvida HMS Sheffield hade en överbyggnad av aluminium/lättmetall eller inte, så kan jag direkt säga med bestämdhet att det hade hon inte.Hans skrev:Absolut inteMane skrev: Det är väl trevligt med flytsaker?
Intressant är, även om det diskuteras, hur Exoceten aldrig exploderade.
The Exocet that struck the Sheffield failed to explode but the impact of the missile travelling at 315 m/s and laden with unburnt rocket fuel was enough to set the ship ablaze. Accounts suggest that the initial impact of the missile immediately destroyed the ship's onboard electricity generating systems and prevented the anti-fire mechanisms from operating effectively, dooming the ship to be consumed by the raging fire.
Från Wikipedia
Fransmännen pratar gärna inte om det då roboten riskerade dåligt rykte och engelsmännen inte heller då det är genant att det går att sänka en båt på det viset - argentinarna var väl nöjda med att båten slogs ut.
/Per
Dom verkar vara helt omodifierade.MD650 skrev:Den finska Leo 2 A4???
http://www.forsvarsmakten.fi/maavoimat/ ... uipment=65
Finns en video som visar en finsk Leo 2A4 om man klickar på "Tilläggsmateriel" under bilderna.
/Per
