Springsharp projekt

Diskussioner kring militär utrustning och dess utveckling genom tiderna.
Användarvisningsbild
Psilander
Medlem
Inlägg: 4702
Blev medlem: 12 jul 2004 12:28
Ort: Sverige

Re: Springsharp projekt

Inläggav Psilander » 05 sep 2014 13:56

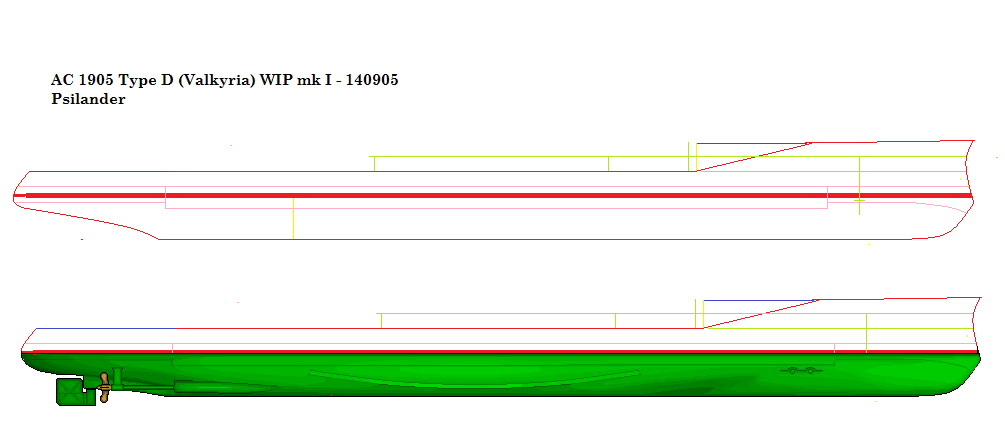

Påbörjat skrovet, jag diskuterar gärna hennes layout, stridsmässighet osv medan jag ritar henne. Även konstnärliga kommentarer mottages


enjoy

Användarvisningsbild
Psilander
Medlem
Inlägg: 4702
Blev medlem: 12 jul 2004 12:28
Ort: Sverige

Re: Springsharp projekt

Inläggav Psilander » 10 sep 2014 09:06

Pillat vidare.

I stort sett gjort klart skrovet, lite detaljer kvar bara.

- Gjorde om fördäcket, så jag fick mer plats för brygga genom att flytta knäcken till akterkan av det istället för som en del av det. Med inspiration från pansarkryssaren HMS Duke of Edinburgh, som har en liknande tornuppställning förut.

- Påbörjat arbete med nya 210mm kanoner (de gamla m/02 jag använde tidigare är ganska fula, och knappt korrekta heller...) Denna är helt hittepå. (därav dee lolörta tornen.


Användarvisningsbild
Psilander
Medlem
Inlägg: 4702
Blev medlem: 12 jul 2004 12:28
Ort: Sverige

Re: Springsharp projekt

Inläggav Psilander » 11 sep 2014 16:59

omarbetad, gjorde om artilleriet pga platsbrist

Valkyria,
Sweden
Armored Cruiser laid
down 1905 (Engine 1906)

Displacement:
9 488 t light; 9 980 t standard; 10 703 t normal; 11 281 t full load

Dimensions: Length (overall / waterline) x beam x draught (normal/deep)
(472,44 ft / 459,32 ft) x 72,18 ft x (19,69 / 20,54 ft)
(144,00 m / 140,00 m) x 22,00 m x (6,00 / 6,26 m)

Armament:
8 - 8,27" / 210 mm 45,0 cal guns - 284,97lbs / 129,26kg shells, 150 per gun
Breech loading guns in turret on barbette mounts, 1905 Model
3 x Twin mounts on centreline ends, majority aft
2 x Single mounts on sides amidships
8 - 5,98" / 152 mm 45,0 cal guns - 108,07lbs / 49,02kg shells, 150 per gun
Quick firing guns in deck and hoist mounts, 1905 Model
4 x Twin mounts on side ends, evenly spread
12 - 2,95" / 75,0 mm 50,0 cal guns - 13,62lbs / 6,18kg shells, 150 per gun
Quick firing guns in deck mounts, 1905 Model
12 x Single mounts on sides, evenly spread
8 raised mounts
2 hull mounts in casemates- Limited use in heavy seas
2 - 2,95" / 75,0 mm 50,0 cal guns - 13,62lbs / 6,18kg shells, 150 per gun
Quick firing guns in casemate mounts, 1905 Model
2 x Single mounts on sides, forward deck forward
2 hull mounts in casemates- Limited use in heavy seas
Weight of broadside 3 335 lbs / 1 513 kg
Main Torpedoes
4 - 17,7" / 450 mm, 19,69 ft / 6,00 m torpedoes - 0,827 t each, 3,309 t total
submerged bow tubes

Armour:
- Belts: Width (max) Length (avg) Height (avg)
Main: 5,91" / 150 mm 301,18 ft / 91,80 m 10,20 ft / 3,11 m
Ends: 1,97" / 50 mm 157,48 ft / 48,00 m 10,20 ft / 3,11 m
0,66 ft / 0,20 m Unarmoured ends
Upper: 1,97" / 50 mm 298,56 ft / 91,00 m 8,01 ft / 2,44 m
Main Belt covers 101 % of normal length
Main belt does not fully cover magazines and engineering spaces

- Hull void:
0,00" / 0 mm 0,00 ft / 0,00 m 0,00 ft / 0,00 m

- Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 5,91" / 150 mm 2,95" / 75 mm 6,89" / 175 mm
2nd: 3,15" / 80 mm 1,18" / 30 mm 3,94" / 100 mm
3rd: 0,39" / 10 mm - -

- Protected deck - single deck:
For and Aft decks: 1,57" / 40 mm
Forecastle: 0,79" / 20 mm Quarter deck: 0,79" / 20 mm

- Conning towers: Forward 5,91" / 150 mm, Aft 29,72" / 755 mm

Machinery:
Coal fired boilers, steam turbines,
Direct drive, 4 shafts, 33 883 shp / 25 277 Kw = 24,00 kts
Range 4 500nm at 10,00 kts
Bunker at max displacement = 1 301 tons (100% coal)

Complement:
525 - 683

Cost:
£0,977 million / $3,908 million

Distribution of weights at normal displacement:
Armament: 793 tons, 7,4 %
- Guns: 786 tons, 7,3 %
- Weapons: 7 tons, 0,1 %
Armour: 2 794 tons, 26,1 %
- Belts: 1 112 tons, 10,4 %
- Armament: 679 tons, 6,3 %
- Armour Deck: 630 tons, 5,9 %
- Conning Towers: 373 tons, 3,5 %
Machinery: 2 420 tons, 22,6 %
Hull, fittings & equipment: 3 331 tons, 31,1 %
Fuel, ammunition & stores: 1 215 tons, 11,4 %
Miscellaneous weights: 150 tons, 1,4 %
- Hull below water: 25 tons
- Hull void weights: 25 tons
- Hull above water: 25 tons
- On freeboard deck: 50 tons
- Above deck: 25 tons

Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
11 439 lbs / 5 189 Kg = 40,5 x 8,3 " / 210 mm shells or 2,6 torpedoes
Stability (Unstable if below 1.00): 1,31
Metacentric height 5,0 ft / 1,5 m
Roll period: 13,6 seconds
Steadiness - As gun platform (Average = 50 %): 54 %
- Recoil effect (Restricted arc if above 1.00): 0,29
Seaboat quality (Average = 1.00): 1,08

Hull form characteristics:
Hull has rise forward of midbreak,
a ram bow and a cruiser stern
Block coefficient (normal/deep): 0,574 / 0,580
Length to Beam Ratio: 6,36 : 1
'Natural speed' for length: 21,43 kts
Power going to wave formation at top speed: 56 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): -5,00 degrees
Stern overhang: 6,56 ft / 2,00 m
Freeboard (% = length of deck as a percentage of waterline length):
Fore end, Aft end
- Forecastle: 20,00 %, 26,25 ft / 8,00 m, 24,61 ft / 7,50 m
- Forward deck: 10,00 %, 24,61 ft / 7,50 m, 24,61 ft / 7,50 m
- Aft deck: 55,00 %, 13,12 ft / 4,00 m, 13,12 ft / 4,00 m
- Quarter deck: 15,00 %, 13,12 ft / 4,00 m, 13,12 ft / 4,00 m
- Average freeboard: 16,70 ft / 5,09 m

Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 101,6 %
- Above water (accommodation/working, high = better): 127,8 %
Waterplane Area: 23 664 Square feet or 2 198 Square metres
Displacement factor (Displacement / loading): 100 %
Structure weight / hull surface area: 115 lbs/sq ft or 559 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 0,95
- Longitudinal: 1,53
- Overall: 0,99
Caution: Hull subject to strain in open-sea
Adequate machinery, storage, compartmentation space
Excellent accommodation and workspace room

Användarvisningsbild
Psilander
Medlem
Inlägg: 4702
Blev medlem: 12 jul 2004 12:28
Ort: Sverige

Re: Springsharp projekt

Inläggav Psilander » 12 sep 2014 20:53

Efter omarbetning mm, vet inte om jag skall ha tripod eller torn till stridsmärsen. Tripod ger mer balans. Sugen på gör en en moderniserad version, som IRL Fylgia. Att de överlevt i malpåse och panikmoderniseras för i tex Asien under VK2.


Användarvisningsbild
gunship
Medlem
Inlägg: 1465
Blev medlem: 14 dec 2004 14:00
Ort: Göteborg

Re: Springsharp projekt

Inläggav gunship » 16 sep 2014 10:45

Personligen gillar jag tornen, men det är ju typisk franskt påfund. En mer engelsk look är ju tripoden.

Användarvisningsbild
Psilander
Medlem
Inlägg: 4702
Blev medlem: 12 jul 2004 12:28
Ort: Sverige

Re: Springsharp projekt

Inläggav Psilander » 11 apr 2015 20:48

Lika bra uppdatera er på de senaste

HMS Valkyria (Valkyria)


Valkyria, Fylgia, Tordön, Tirfing
Sweden
Armored Cruiser laid down 1905 (Engine 1906)

Displacement:
9 488 t light; 9 980 t standard; 10 703 t normal; 11 281 t full load

Dimensions: Length (overall / waterline) x beam x draught (normal/deep)
(472,44 ft / 459,32 ft) x 72,18 ft x (19,69 / 20,54 ft)
(144,00 m / 140,00 m) x 22,00 m x (6,00 / 6,26 m)

Armament:
8 - 8,27" / 210 mm 45,0 cal guns - 284,97lbs / 129,26kg shells, 150 per gun
Breech loading guns in turret on barbette mounts, 1905 Model
3 x Twin mounts on centreline ends, majority aft
2 x Single mounts on sides amidships
8 - 5,98" / 152 mm 45,0 cal guns - 108,07lbs / 49,02kg shells, 150 per gun
Quick firing guns in deck and hoist mounts, 1905 Model
4 x Twin mounts on side ends, evenly spread
12 - 2,95" / 75,0 mm 50,0 cal guns - 13,62lbs / 6,18kg shells, 150 per gun
Quick firing guns in deck mounts, 1905 Model
12 x Single mounts on sides, evenly spread
8 raised mounts
2 hull mounts in casemates- Limited use in heavy seas
2 - 2,95" / 75,0 mm 50,0 cal guns - 13,62lbs / 6,18kg shells, 150 per gun
Quick firing guns in casemate mounts, 1905 Model
2 x Single mounts on sides, forward deck forward
2 hull mounts in casemates- Limited use in heavy seas
Weight of broadside 3 335 lbs / 1 513 kg
Main Torpedoes
4 - 17,7" / 450 mm, 19,69 ft / 6,00 m torpedoes - 0,827 t each, 3,309 t total
submerged bow tubes

Armour:
- Belts: Width (max) Length (avg) Height (avg)
Main: 5,91" / 150 mm 301,18 ft / 91,80 m 10,20 ft / 3,11 m
Ends: 1,97" / 50 mm 157,48 ft / 48,00 m 10,20 ft / 3,11 m
0,66 ft / 0,20 m Unarmoured ends
Upper: 1,97" / 50 mm 298,56 ft / 91,00 m 8,01 ft / 2,44 m
Main Belt covers 101 % of normal length
Main belt does not fully cover magazines and engineering spaces

- Hull void:
0,00" / 0 mm 0,00 ft / 0,00 m 0,00 ft / 0,00 m

- Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 5,91" / 150 mm 2,95" / 75 mm 6,89" / 175 mm
2nd: 3,15" / 80 mm 1,18" / 30 mm 3,94" / 100 mm
3rd: 0,39" / 10 mm - -

- Protected deck - single deck:
For and Aft decks: 1,57" / 40 mm
Forecastle: 0,79" / 20 mm Quarter deck: 0,79" / 20 mm

- Conning towers: Forward 5,91" / 150 mm, Aft 29,72" / 755 mm

Machinery:
Coal fired boilers, steam turbines,
Direct drive, 4 shafts, 33 883 shp / 25 277 Kw = 24,00 kts
Range 4 500nm at 10,00 kts
Bunker at max displacement = 1 301 tons (100% coal)

Complement:
525 - 683

Cost:
£0,977 million / $3,908 million

Distribution of weights at normal displacement:
Armament: 793 tons, 7,4 %
- Guns: 786 tons, 7,3 %
- Weapons: 7 tons, 0,1 %
Armour: 2 792 tons, 26,1 %
- Belts: 1 109 tons, 10,4 %
- Armament: 679 tons, 6,3 %
- Armour Deck: 630 tons, 5,9 %
- Conning Towers: 373 tons, 3,5 %
Machinery: 2 420 tons, 22,6 %
Hull, fittings & equipment: 3 334 tons, 31,1 %
Fuel, ammunition & stores: 1 215 tons, 11,4 %
Miscellaneous weights: 150 tons, 1,4 %
- Hull below water: 25 tons
- Hull void weights: 25 tons
- Hull above water: 25 tons
- On freeboard deck: 50 tons
- Above deck: 25 tons

Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
11 446 lbs / 5 192 Kg = 40,5 x 8,3 " / 210 mm shells or 2,6 torpedoes
Stability (Unstable if below 1.00): 1,31
Metacentric height 5,0 ft / 1,5 m
Roll period: 13,6 seconds
Steadiness - As gun platform (Average = 50 %): 54 %
- Recoil effect (Restricted arc if above 1.00): 0,29
Seaboat quality (Average = 1.00): 1,08

Hull form characteristics:
Hull has rise forward of midbreak,
a ram bow and a cruiser stern
Block coefficient (normal/deep): 0,574 / 0,580
Length to Beam Ratio: 6,36 : 1
'Natural speed' for length: 21,43 kts
Power going to wave formation at top speed: 56 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): -5,00 degrees
Stern overhang: 6,56 ft / 2,00 m
Freeboard (% = length of deck as a percentage of waterline length):
Fore end, Aft end
- Forecastle: 20,00 %, 26,25 ft / 8,00 m, 24,61 ft / 7,50 m
- Forward deck: 10,00 %, 24,61 ft / 7,50 m, 24,61 ft / 7,50 m
- Aft deck: 55,00 %, 13,12 ft / 4,00 m, 13,12 ft / 4,00 m
- Quarter deck: 15,00 %, 13,12 ft / 4,00 m, 13,12 ft / 4,00 m
- Average freeboard: 16,70 ft / 5,09 m

Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 101,6 %
- Above water (accommodation/working, high = better): 127,8 %
Waterplane Area: 23 664 Square feet or 2 198 Square metres
Displacement factor (Displacement / loading): 100 %
Structure weight / hull surface area: 115 lbs/sq ft or 559 Kg/sq metre
Hull strength (Relative):
- Cross-sectional: 0,95
- Longitudinal: 1,53
- Overall: 1,00
Adequate machinery, storage, compartmentation space
Excellent accommodation and workspace room

Användarvisningsbild
Psilander
Medlem
Inlägg: 4702
Blev medlem: 12 jul 2004 12:28
Ort: Sverige

Re: Springsharp projekt

Inläggav Psilander » 11 apr 2015 20:50

HMS Uppland, tung kryssare 1938

Sweden, Heavy Cruiser Uppland (Öland) - 1938
(planned; Halland, Småland, Östergötland & Gästrikland - halted 1942, completed as CGL's Äran, Tapperheten, Manligheten & Dristigheten 1958-1962)

Displacement:
11 006 t light; 11 567 t standard; 12 500 t normal; 13 246 t full load

Dimensions: Length (overall / waterline) x beam x draught (normal/deep)
(619,19 ft / 606,96 ft) x 72,18 ft x (21,33 / 22,22 ft)
(188,73 m / 185,00 m) x 22,00 m x (6,50 / 6,77 m)

Armament:
9 - 8,27" / 210 mm 45,0 cal guns - 284,98lbs / 129,26kg shells, 150 per gun
Breech loading guns in turret on barbette mounts, 1937 Model
2 x 3-gun mounts on centreline ends, evenly spread
1 x 3-gun mount on centreline, aft deck centre
14 - 4,13" / 105 mm 45,0 cal guns - 35,62lbs / 16,16kg shells, 300 per gun
Quick firing guns in turret on barbette mounts, 1937 Model
6 x 2 row twin mounts on sides, evenly spread
2 raised mounts
1 x 2 row twin mount on centreline forward
1 raised mount
24 - 1,57" / 40,0 mm 60,0 cal guns - 2,14lbs / 0,97kg shells, 500 per gun
Anti-air guns in deck mounts, 1936 Model
12 x Twin mounts on sides, evenly spread
12 raised mounts
Weight of broadside 3 115 lbs / 1 413 kg
Main Torpedoes
6 - 21,0" / 533 mm, 26,25 ft / 8,00 m torpedoes - 1,738 t each, 10,428 t total
In 2 sets of deck mounted side rotating tubes
Mines
2 - 661,39 lbs / 300,00 kg mines + 60 reloads - 18,306 t total
in Above water - Stern racks/rails

Aircraft: 1x Steam catapult and workshop, no hangar for 1x S 8 Scoutplane (Grumman J2F "Duck")

Armour:
- Belts: Width (max) Length (avg) Height (avg)
Main: 5,91" / 150 mm 393,70 ft / 120,00 m 10,20 ft / 3,11 m
Ends: 1,97" / 50 mm 196,85 ft / 60,00 m 10,20 ft / 3,11 m
16,40 ft / 5,00 m Unarmoured ends
Upper: 1,97" / 50 mm 393,70 ft / 120,00 m 8,01 ft / 2,44 m
Main Belt covers 100 % of normal length

- Hull void:
0,00" / 0 mm 0,00 ft / 0,00 m 0,00 ft / 0,00 m

- Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 3,94" / 100 mm 1,77" / 45 mm 1,77" / 45 mm
2nd: 1,77" / 45 mm 0,79" / 20 mm 0,79" / 20 mm
3rd: 0,20" / 5 mm - -

- Armoured deck - multiple decks:
For and Aft decks: 1,77" / 45 mm
Forecastle: 0,79" / 20 mm Quarter deck: 0,79" / 20 mm

- Conning towers: Forward 5,91" / 150 mm, Aft 5,91" / 150 mm

Machinery:
Oil fired boilers, steam turbines,
Geared drive, 2 shafts, 88 633 shp / 66 120 Kw = 32,00 kts
Range 7 500nm at 14,00 kts
Bunker at max displacement = 1 679 tons

Complement:
590 - 768

Cost:
£5,574 million / $22,297 million

Senast redigerad av 2 Psilander, redigerad totalt 11 gång.

Användarvisningsbild
Psilander
Medlem
Inlägg: 4702
Blev medlem: 12 jul 2004 12:28
Ort: Sverige

Re: Springsharp projekt

Inläggav Psilander » 11 apr 2015 20:51

HMS Äran, robotkryssare byggd på de fyra icke färdigställda skroven i Upplandsklassen. I tjänst ca 1960

Sweden
Guided missile cruiser laid down 1939 (1960)

Äran (Glory)
Tapperheten (Couragous)
Manligheten (Masculinity)
Dristigheten (Audacity)


Displacement:
11 006 t light; 11 567 t standard; 12 500 t normal; 13 246 t full load

Dimensions: Length (overall / waterline) x beam x draught (normal/deep)
(619,19 ft / 606,96 ft) x 72,18 ft x (21,33 / 22,22 ft)
(188,73 m / 185,00 m) x 22,00 m x (6,50 / 6,77 m)

Armament:
4 - 5,98" / 152 mm guns (2x2 guns), 107,15lbs / 48,60kg shells, 1950 Model
Automatic rapid fire guns in turrets (on barbettes)
on centreline ends, all forward
10 - 2,24" / 57,0 mm guns (5x2 guns), 5,65lbs / 2,56kg shells, 1950 Model
Automatic rapid fire guns in turrets (on barbettes)
on side, all amidshipd

Missiles
2x1 RIM-2 Terrier with PE-55 (SPG-55) 32 missiles
1x2 RIM-24 Tartar with PE-51 (SPG-51) 16+16 missiles
2x1 RBS 08A SSM, radar homeing, internal guidence, 12 missiles

Weight of broadside 489 lbs / 222 kg
Shells per gun, main battery: 400
4 - 15,7" / 400 mm above water torpedoes

Armour:
- Belts: Width (max) Length (avg) Height (avg)
Main: 2,95" / 75 mm 328,08 ft / 100,00 m 9,22 ft / 2,81 m
Ends: 0,39" / 10 mm 65,62 ft / 20,00 m 9,22 ft / 2,81 m
213,25 ft / 65,00 m Unarmoured ends
Upper: 0,39" / 10 mm 362,53 ft / 110,50 m 8,01 ft / 2,44 m
Main Belt covers 83 % of normal length

- Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 1,97" / 50 mm 1,18" / 30 mm 1,97" / 50 mm
2nd: 0,98" / 25 mm 0,39" / 10 mm 0,98" / 25 mm
3rd: 0,20" / 5 mm 0,08" / 2 mm 0,20" / 5 mm

- Armour deck: 1,18" / 30 mm, Conning tower: 1,97" / 50 mm

Sensors
LW-02/ PS-47, S-band, longe range air/ surface search radar
SPS-39/52/ PS-52 3D search radar
Saturn CSF/PS-041 C-band air/ surface search,,
UUA-3/ PQ800 ESM

PN-20 X-band navigational radar


Machinery:
Oil fired boilers, steam turbines,
geared drive, 2 shafts, 67 604 shp / 50 432 Kw = 33,00 kts
Range 6 000nm at 16,00 kts
Bunker at max displacement = 1 173 tons

Complement:
446 - 580

Användarvisningsbild
gunship
Medlem
Inlägg: 1465
Blev medlem: 14 dec 2004 14:00
Ort: Göteborg

Re: Springsharp projekt

Inläggav gunship » 06 okt 2017 02:33

Återupplivar denna tråd, med ett kryssarförsök.

Har efter att spelat World of Warships grottat ner mig i kryssare, speciellt tunga sådana. Såg nu när jag ska posta att Psilander redan (för två år sedan) har gjort en egen, snarlik min variant - MEN då jag tålmodigt pressat ner min från 12 000 ton standard displacement (washington standard eller?) till lite över 10 000 ton, ser jag att hans ligger på 11 500 ton, i skam med Washingtonföredragen! (dock observerar jag att 12 000 ton full load är mer likt typ New Orleans - är det definitioner som matarvaten och sånt som spökar? Ökade min kryssare till 10 400 ton, bara genom extra räckvidd, efter att skamlöst snelgat på tidigare nämnda varianter. Samma med minorna!

Orininalet mitt var på 3+2+2x203mm, 8x2 152mm och lv, 35 knops fart och 150mm eller så i pansarbälte - Men detta vägte kring 11-12 tusen ton, klart över washingtonföredragets gränser. Jag resonerade att 152mm sekundärartelleri var onödigt grovt, så jag skalade ned det till 105mm, sedan att ska man ha tre torn borde alla vara trippeltorn. Följdaktligen fick farten gå ner till mer normala 32 knop, vilket även gav lägre fribord, vilket gav mycket vikt att lägga på bepansring - 180mm i bältet är nog bland de bättre bland tunga kryssare hade under epoken. däcket på 60mm är kanske inte så märkvärdigt, och torpedskyddet 40mm har bara en halvmeter i volym åt sidorna - men frågan är om det är nog att ens vara värt det?

funderingar - hon är ganska smal? 17,8m utan torpedbulber, och så ska hon ha trippel 203mm... en överslagsräkning gjorde min skissade barbett till ca 7m i diameter - förliga tornet är ganska långt bak och de aktra drar fördel av en stor transom = ganska bred akteröver - borde funka? New Orleans är 18,8m bred, men så har hon också superfiring torn fram - mycket högre upp.

Fribordet i fören är hela tre meter över fördäckets nivå - det förliga tornet kan knapperligen skjuta rakt fram, ens vid ganska hög elevation. Jag resonerade att jag hellre ger SpringSharp 1,0 i sjövädighet än att man ska kunna skjuta precis rakt fram.

Kod: Markera allt

KryssareTungTest, Sweden Enter ship type laid down 1939

Displacement:
   9 985 t light; 10 447 t standard; 11 347 t normal; 12 066 t full load

Dimensions: Length (overall / waterline) x beam x draught (normal/deep)
   (611,83 ft / 590,55 ft) x 58,40 ft (Bulges 60,04 ft) x (19,69 / 20,67 ft)
   (186,48 m / 180,00 m) x 17,80 m (Bulges 18,30 m)  x (6,00 / 6,30 m)

Armament:
      9 - 7,99" / 203 mm 55,0 cal guns - 275,51lbs / 124,97kg shells, 120 per gun
     Breech loading guns in turret on barbette mounts, 1939 Model
     2 x 3-gun mounts on centreline, aft deck aft
      1 raised mount aft - superfiring
     1 x 3-gun mount on centreline, forward deck forward
      12 - 4,13" / 105 mm 55,0 cal guns - 38,14lbs / 17,30kg shells, 190 per gun
     Dual purpose guns in deck and hoist mounts, 1930 Model
     6 x Twin mounts on sides, evenly spread
      24 - 1,57" / 40,0 mm 70,0 cal guns - 2,05lbs / 0,93kg shells, 350 per gun
     Anti-air guns in deck mounts, 1936 Model
     4 x Quad mounts on centreline, aft evenly spread
      4 raised mounts
     2 x Quad mounts on centreline, evenly spread
      2 raised mounts
      16 - 0,79" / 20,0 mm 66,0 cal guns - 0,26lbs / 0,12kg shells, 5 000 per gun
     Machine guns in deck mounts, 1940 Model
     8 x Twin mounts on centreline, evenly spread
      8 raised mounts
      Weight of broadside 2 991 lbs / 1 357 kg
      Main Torpedoes
      12 - 21,0" / 533 mm, 26,25 ft / 8,00 m torpedoes - 1,746 t each, 20,952 t total
   In 4 sets of deck mounted side rotating tubes
      2nd Torpedoes
      12 - 21,0" / 533 mm, 26,25 ft / 8,00 m torpedoes - 1,746 t each, 20,952 t total
   In 4 sets of deck mounted reloads
      Mines
      2 - 661,39 lbs / 300,00 kg mines + 60 reloads - 18,306 t total
   in Above water - Stern racks/rails

Armour:
   - Belts:      Width (max)   Length (avg)      Height (avg)
   Main:   7,09" / 180 mm   354,33 ft / 108,00 m   9,28 ft / 2,83 m
   Ends:   Unarmoured
     Main Belt covers 92 % of normal length

   - Torpedo Bulkhead - Strengthened structural bulkheads:
      1,57" / 40 mm   344,49 ft / 105,00 m   18,08 ft / 5,51 m
   Beam between torpedo bulkheads 58,40 ft / 17,80 m

   - Hull Bulges:
      0,39" / 10 mm   344,49 ft / 105,00 m   14,76 ft / 4,50 m

   - Gun armour:   Face (max)   Other gunhouse (avg)   Barbette/hoist (max)
   Main:   5,91" / 150 mm   3,94" / 100 mm      5,91" / 150 mm
   2nd:   1,97" / 50 mm   0,98" / 25 mm      0,98" / 25 mm
   4th:   0,98" / 25 mm         -               -
   5th:   0,79" / 20 mm         -               -

   - Protected deck - single deck:
   For and Aft decks: 2,36" / 60 mm

   - Conning towers: Forward 4,72" / 120 mm, Aft 2,95" / 75 mm

Machinery:
   Oil fired boilers, steam turbines,
   Geared drive, 4 shafts, 82 394 shp / 61 466 Kw = 32,00 kts
   Range 7 500nm at 14,00 kts
   Bunker at max displacement = 1 619 tons

Complement:
   549 - 714

Cost:
   £5,851 million / $23,406 million

Distribution of weights at normal displacement:
   Armament: 1 090 tons, 9,6 %
      - Guns: 1 000 tons, 8,8 %
      - Weapons: 91 tons, 0,8 %
   Armour: 2 986 tons, 26,3 %
      - Belts: 975 tons, 8,6 %
      - Torpedo bulkhead: 363 tons, 3,2 %
      - Bulges: 74 tons, 0,7 %
      - Armament: 577 tons, 5,1 %
      - Armour Deck: 914 tons, 8,1 %
      - Conning Towers: 84 tons, 0,7 %
   Machinery: 2 229 tons, 19,6 %
   Hull, fittings & equipment: 3 680 tons, 32,4 %
   Fuel, ammunition & stores: 1 361 tons, 12,0 %
   Miscellaneous weights: 0 tons, 0,0 %

Overall survivability and seakeeping ability:
   Survivability (Non-critical penetrating hits needed to sink ship):
     14 224 lbs / 6 452 Kg = 55,7 x 8,0 " / 203 mm shells or 1,6 torpedoes
   Stability (Unstable if below 1.00): 1,05
   Metacentric height 2,5 ft / 0,7 m
   Roll period: 16,1 seconds
   Steadiness   - As gun platform (Average = 50 %): 51 %
         - Recoil effect (Restricted arc if above 1.00): 0,80
   Seaboat quality  (Average = 1.00): 1,00

Hull form characteristics:
   Hull has rise forward of midbreak,
     a normal bow and large transom stern
   Block coefficient (normal/deep): 0,569 / 0,576
   Length to Beam Ratio: 9,84 : 1
   'Natural speed' for length: 27,56 kts
   Power going to wave formation at top speed: 58 %
   Trim (Max stability = 0, Max steadiness = 100): 51
   Bow angle (Positive = bow angles forward): 30,00 degrees
   Stern overhang: 3,28 ft / 1,00 m
   Freeboard (% = length of deck as a percentage of waterline length):
            Fore end,    Aft end
      - Forecastle:   20,00 %,  31,17 ft / 9,50 m,  21,33 ft / 6,50 m
      - Forward deck:   40,00 %,  21,33 ft / 6,50 m,  21,33 ft / 6,50 m
      - Aft deck:   25,00 %,  16,40 ft / 5,00 m,  16,40 ft / 5,00 m
      - Quarter deck:   15,00 %,  16,40 ft / 5,00 m,  16,40 ft / 5,00 m
      - Average freeboard:      20,14 ft / 6,14 m

Ship space, strength and comments:
   Space   - Hull below water (magazines/engines, low = better): 91,6 %
      - Above water (accommodation/working, high = better): 160,5 %
   Waterplane Area: 25 519 Square feet or 2 371 Square metres
   Displacement factor (Displacement / loading): 106 %
   Structure weight / hull surface area: 115 lbs/sq ft or 562 Kg/sq metre
   Hull strength (Relative):
      - Cross-sectional: 0,96
      - Longitudinal: 1,43
      - Overall: 1,00
   Adequate machinery, storage, compartmentation space
   Excellent accommodation and workspace room





Återgå till "Militär teknikhistoria"

Vilka är online

Användare som besöker denna kategori: 0 och 0 gäster
